PDF Plan Scale Calibration: Check Before Measuring
PDF plan scale calibration should come before counting a measured route as an estimating quantity. A drawing label such as “1:100” is a useful clue, but a file may have been resized, cropped or assembled with views at different scales. Start with a known dimension on the specific view you are going to measure and verify the result before collecting quantities.
PDF plan scale calibration starts with a reference
Choose a clearly dimensioned length with identifiable endpoints. Record the drawing number, revision, page and unit of that dimension. Use a reference that belongs to the view being measured rather than a detail placed elsewhere on the sheet.
For example, suppose a labelled distance is 5.00 metres. After calibration, measuring those same endpoints should return 5.00 metres within the precision appropriate to the source drawing and your workflow. This is a check of the calibration input, not independent evidence that every part of the sheet is accurate.
TakeoffElec supports scale calibration, route and area measurements and electrical element counts. This article explains a checking method for that kind of workflow. It does not assume a particular button name or claim that an online account editor is available.
Check a second known dimension
Measure a different labelled distance, preferably in another part of the same view. If it does not agree, stop and investigate the units, selected endpoints, page scaling and whether the view itself uses a different scale. Do not average conflicting results simply to continue the estimate.
A concrete arithmetic example helps: a 10.00-metre reference reported as 9.80 metres is 0.20 metres short, or 2% of the labelled length. That does not establish an acceptable tolerance. It identifies a discrepancy that needs an explanation from the source document or the person responsible for it.
Where possible, choose references in different directions. A scan or image can be distorted unevenly, so matching one line alone is a weak basis for assuming the entire view is reliable.
Keep length and area units distinct
A length measured in metres and an area measured in square metres are different quantities. If a linear scale is wrong by a factor of two in both directions, the resulting area is wrong by a factor of four. Record the unit alongside each quantity so that a later export or estimate does not lose that distinction.
For an independent example of how a PDF tool exposes scale ratios, units and distance, perimeter and area measurements, consult Adobe’s measurement documentation. Those controls belong to Acrobat. They are a reference for the concepts, not instructions for an unverified TakeoffElec screen.
Distinguish a drawn route from an installation allowance
Measure the route that the plan actually shows, using the agreed basis for the takeoff. Record separately any allowance for vertical runs, terminations, waste or other project-specific requirements. A two-dimensional plan measurement does not automatically establish all of the material required for an installation.
For example, a horizontal route and a rise to equipment may belong in separate lines of the estimate. Avoid hiding an unexplained percentage inside the measured length. A reviewer should be able to see which number came from the drawing and which number came from an explicit estimating assumption.
This is measurement and estimating guidance, not an electrical design calculation or a substitute for the project specifications and qualified professional review.
Keep a compact calibration record
Before taking off quantities, write down the source file and revision, the view or page, the reference dimension, the selected units, and the result of the independent check. Add a short note when a detail uses a different scale or when you have excluded an uncertain region.
If the source file changes, review the calibration rather than treating the earlier setting as permanently valid. A revision can affect the geometry you are measuring even when the filename looks similar.
Where TakeoffElec fits

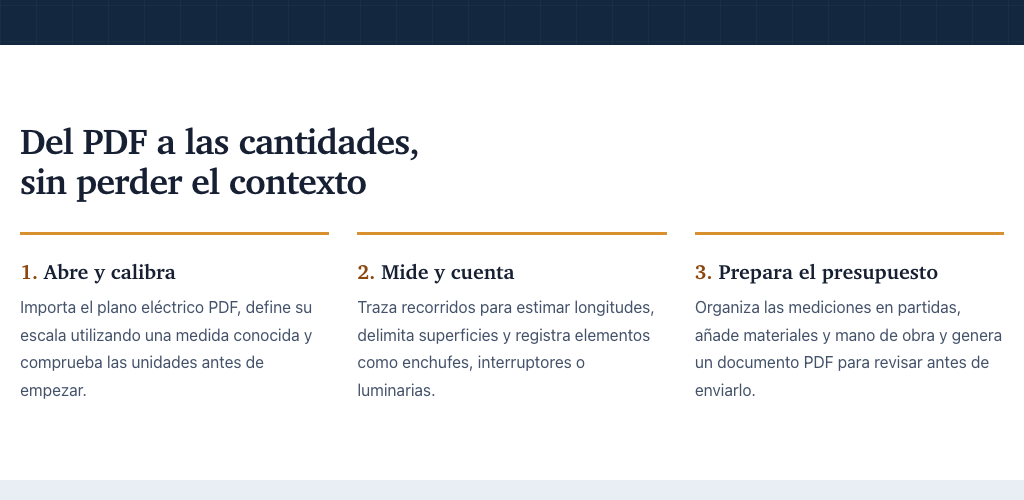

TakeoffElec imports and displays PDF electrical plans. TakeoffElec can produce PDF estimates. The TakeoffElec product page explains the product and its current availability; this guide does not promise a live registration flow or purchasing option.
A useful first deliverable is a small, reviewable takeoff with its calibration record attached. Establish that the source and units are understood before increasing the amount of measurement work.
